Project
Structural Integrity Assessment
Inspection of components and joints using structural integrity assessment techniques.
Mining and industryApplication
InspectionSpecialty
Technical assessmentAs required
- Component
- Components and welded joints
- Project type
- Inspection
- Documentation
- 2026 corporate brochure
- Photographic record
- 5 images
Project description

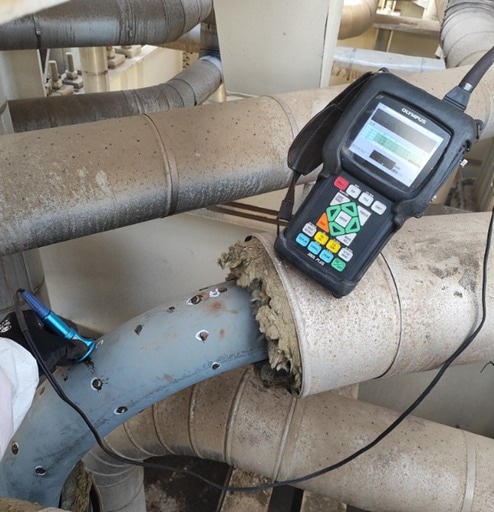

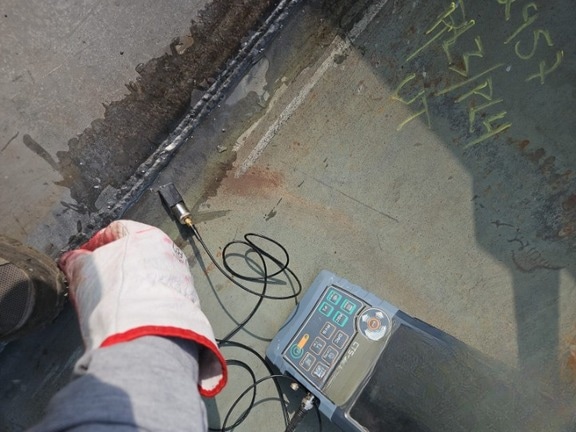

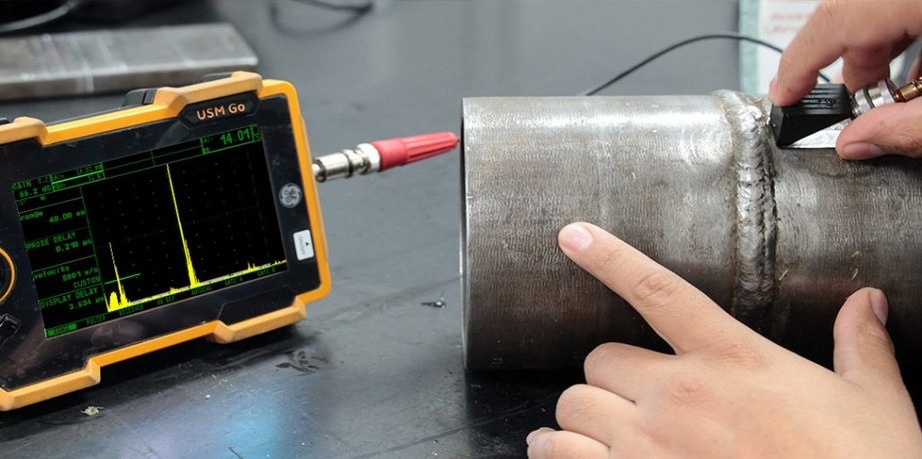

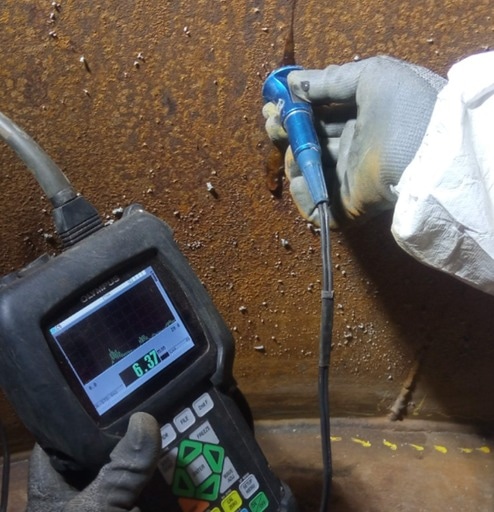

The brochure includes visual inspection, ultrasonic testing, magnetic particle testing, and TOFD, as well as services related to welding procedures and welder qualification. The method and acceptance criteria are selected according to the material, geometry, and inspection objective.
Corporate brochure · pp. 23–24 ↗Components and elements
- Surfaces and joint areas
- Areas accessible for inspection
- Instruments and assessment references
- Records and technical reports
Verification criteria
- Suitability of the method for the material and geometry
- Access and preparation conditions
- Recording and assessment of indications
- Traceability of results and criteria used
Technical context of the service
Non-destructive testing assesses components without destroying the part being examined. TWI explains that each technique has its applications and limitations; the combination of methods depends on the type of discontinuity and the inspection conditions.
TWI · Non-destructive testing ↗How we approach this type of service
The sequence is adapted to the diagnosis and the agreed scope for each component.
- 01
Define the component, scope, and assessment criteria.
- 02
Select the method and prepare the inspection area.
- 03
Carry out the assessment according to the applicable procedure.
- 04
Record indications and issue the corresponding report.
Quality control tailored to the component’s needs
Criteria, tests, and delivery documentation are defined with the client before work begins.
- Suitability of the method for the material and geometry
- Access and preparation conditions
- Recording and assessment of indications
- Traceability of results and criteria used
Technical information for your project
Non-destructive testing assesses components without destroying the part being examined. TWI explains that each technique has its applications and limitations; the combination of methods depends on the type of discontinuity and the inspection conditions.
